Top & Tilt Kit to fit John Deere 6900

AGRISTORE USA

$579.99
SKU: 11227

PLEASE VERIFY THE SIZE OF THESE CYLINDERS WILL WORK ON YOUR TRACTOR BEFORE ORDERING.

A John Deere 6900 top and tilt kit would take one hydraulic top link (part number 11227) and one hydraulic side link (36992). Both cylinders come with a double-piloted check valve. Cylinders must be purchased individually.

TOP LINK SPECS:
Category: 3
Pin hole: 1 1/4"
Ball width: 2"
Clevis width: 2"
Min length: 23 5/8"
Max length: 30 1/8"
(Min and max lengths are taken from pin center to pin center)

Stroke: 6 1/2"
Cylinder bore: 3 1/8"
Rod diameter: 1 9/16"

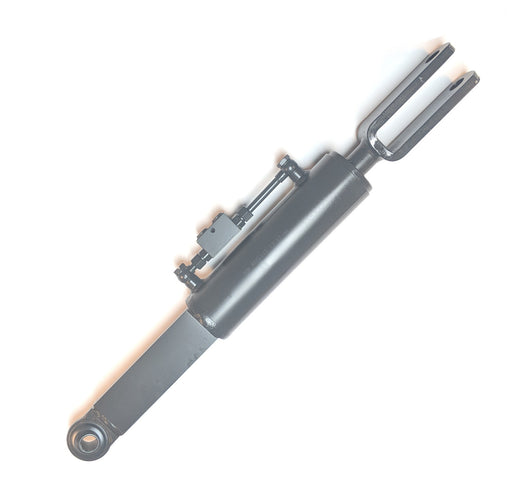

SIDE LINK SPECS:
Pin hole (fork end): 1"
Pin hole (other end): 1"
Ball width: 1 3/8"
Fork width (internal): 1 5/8"
Min length: 32 11/16"
Max length: 40 3/16"
(Min and max lengths are taken from pin center to pin center)
Stroke: 7 1/2"
Cylinder bore: 3 1/8"
Rod diameter: 1 9/16"

Available hydraulic hose kits:

Share:
Disclaimer: Original equipment manufacturer names, part numbers, tradenames, trademarks, drawings, colors, and descriptive information are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
