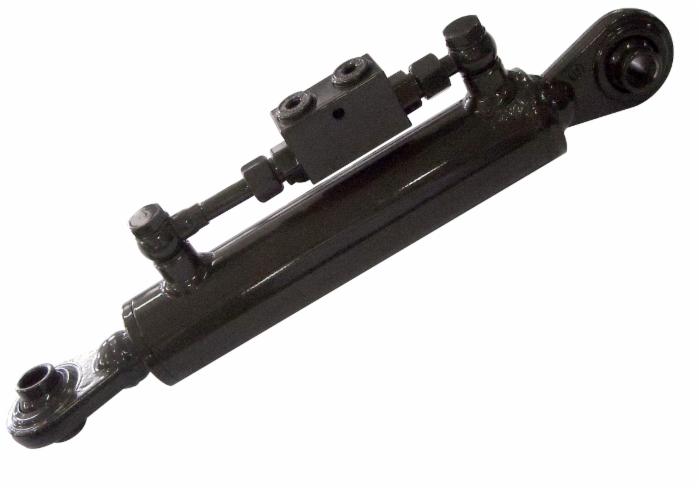

Category 1 Hydraulic Top Link 17 5/16" - 25 3/16"

$214.99

SKU: 82673

Our Category 1 Hydraulic Top Link with double-piloted check valve prevents cylinder drift and holds cylinder in position. This feature makes our hydraulic top link the best in the market!

Cylinder Features:

Part Number 82673

Category: 1
Pin hole: 3/4"
Ball width: 1 3/4"
Min length: 17 5/16"
Max length: 25 3/16"
(Min and max lengths are taken from pin center to pin center)
Stroke: 7 7/8"
Cylinder bore: 2"
Rod Diameter: 1 3/16"

The following two measurements are general guidelines, calculated on a working pressure of 2175 psi:
- Pushing capacity: 6700 lbs
- Lifting capacity: 4300 lbs

Double-piloted check valve
Ports 3/8" BSP (Includes BSP male to NPT male adapters)
Double-acting cylinder
High-quality chrome plated & polished rod
Honed & finished steel tube
Top quality seals
Pressure tested
1 year warranty
Standard color is graphite

Available hydraulic hose kits:

- kit with 1/4" valve type couplers - 36" long

- kit with 1/2" valve type couplers - 36" long
- kit with 1/2" ball type couplers - 36" long

- kit with 1/2" valve type couplers - 24" long
- kit with 1/2" ball type couplers - 24" long

Piston seal kit: 06132
Head seal kit: 0AS5030GC

Not sure which top link you need? This article may help: Hydraulic Top Link Cylinders

Disclaimer: Original equipment manufacturer names, part numbers, tradenames, trademarks, drawings, colors, and descriptive information are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
