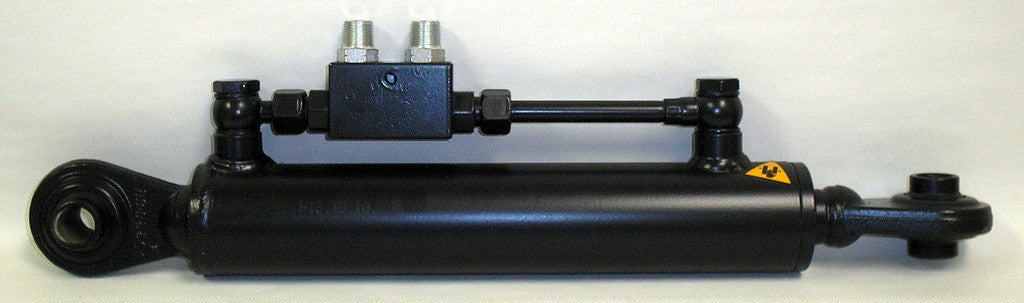

Category 2 Hydraulic Top Link 19 11/16" - 28"

AGRISTORE USA

$249.99
SKU: 06011

Our Category 2 Hydraulic Top Link with double-piloted check valve prevents cylinder drift and holds cylinder in position. This feature makes our hydraulic top link the best in the market!

Cylinder Features:

Part Number 06011

Category: 2
Pin hole: 1"
Ball width: 2"
Min length: 19 11/16"
Max length: 28"
(Min and max lengths are taken from pin center to pin center)
Stroke: 8 5/16"
Cylinder bore: 2 1/2"
Rod diameter: 1 3/8"

The following two measurements are general guidelines, calculated on a working pressure of 2175 psi:
 - Pushing capacity: 10,600 lbs
 - Lifting capacity: 7300 lbs

Double-piloted check valve
Ports 3/8" BSP (Includes BSP male to NPT male adapters)
Double-acting cylinder
High-quality chrome plated & polished rod
Honed & finished steel tube
Top quality seals
Pressure tested
1 year warranty
Standard color is graphite

Available hydraulic hose kits:

Not sure which top link you need? This article may help: Hydraulic Top Link Cylinders
Available replacement parts:

04202 check valve
05508 tubing kit
05191 check valve + tubing kit
