Hydraulic Side Link: 21 5/8" - 28 3/4"
AGRISTORE USA
$344.99
SKU: 05997
Hydraulic Side Link with Two Forks
Part Number 05997

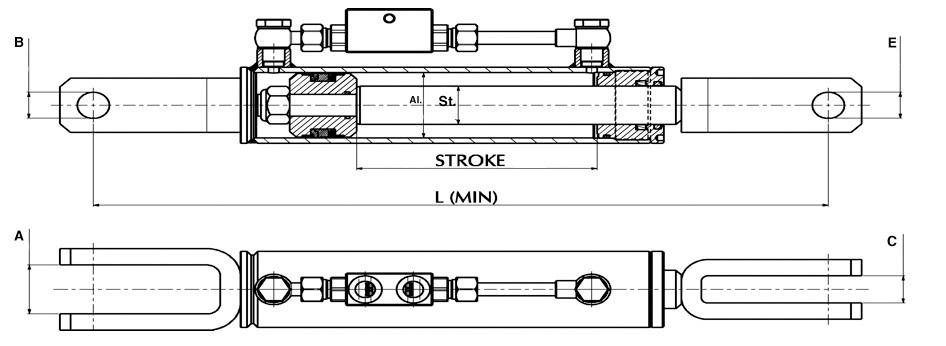

Pin hole (B): 15/16"
Pin hole (E): 15/16"
Internal fork width (A): 1 3/4"
Internal fork width (C): 1"
Min length (L): 21 5/8"
Max length: 28 3/4"
(Min and max lengths are taken from pin center to pin center)
Stroke: 7 1/8"
Cylinder bore: 2 3/8"
Rod diameter: 1 3/8"
Features:
Double-piloted check valve
Ports 3/8" BSP (Includes BSP male to NPT male adapters)
Double-acting cylinder
High-quality chrome plated & polished rod
Honed & finished steel tube
Top quality seals
Pressure tested
1 year warranty
Standard color is graphite
Available hydraulic hose kits:
