Hydraulic Side Link for Kubota BX

$499.99

SKU: Y603010AE

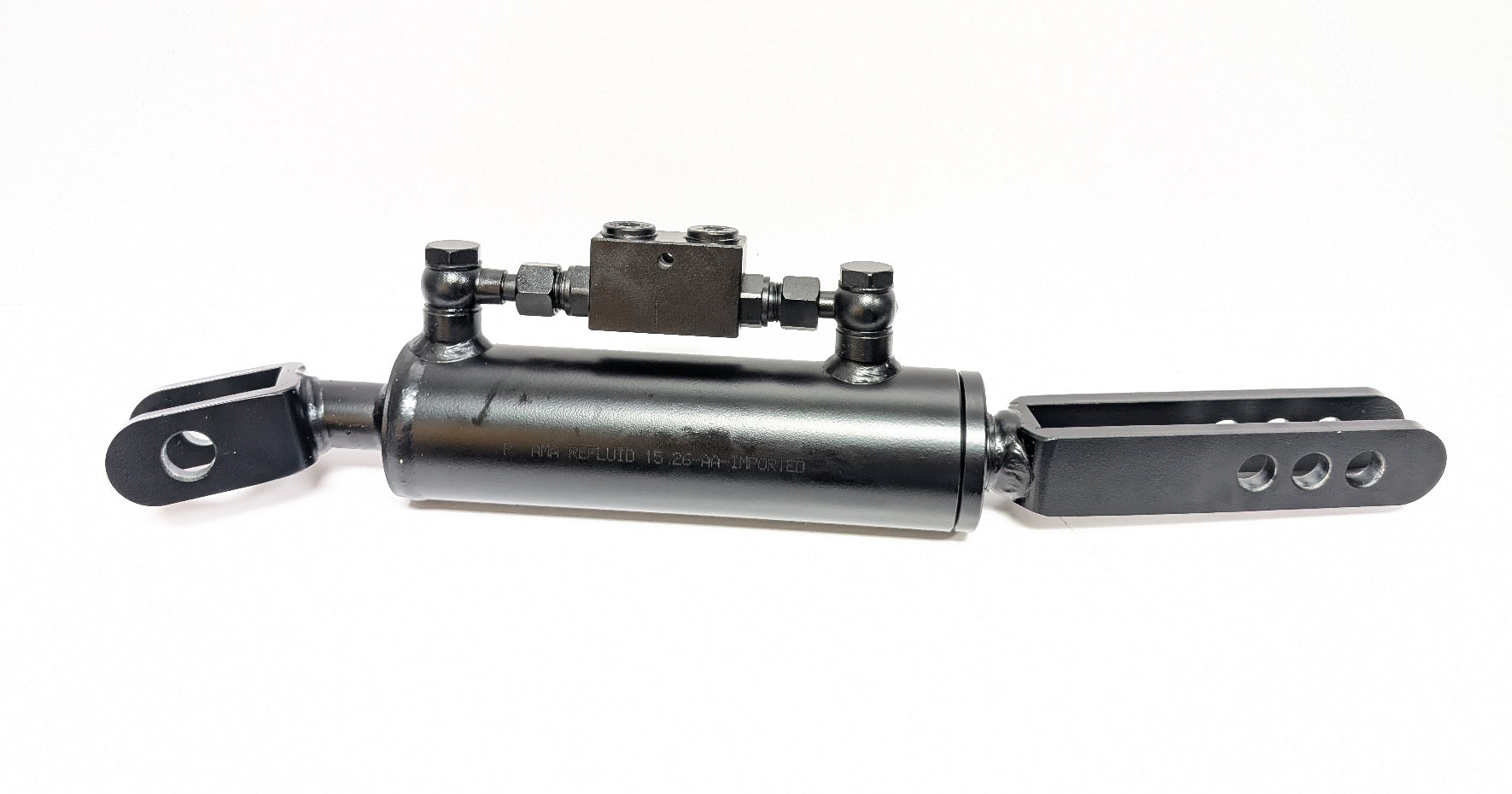

Hydraulic Side Link with Two Angled Forks

*PLEASE VERIFY DIMENSIONS WILL WORK ON YOUR TRACTOR BEFORE ORDERING*

Part Number Y603010AE

Pin hole (upper fork): 3/4"
Pin holes (lower fork): 5/8"
Pin holes on lower fork are 1" center to center from each other
Internal width of upper fork: 1 1/2"
Internal width of lower fork: 7/8"
Min length: 17 15/16"
Max length: 21 7/8"
(Min and max lengths are taken from pin center on upper fork to first pin center in lower fork)
Stroke: 4"
Cylinder bore: 2 3/8"
Rod diameter: 1 9/16"

Features:

Double-piloted check valve
Ports 3/8" BSP (Includes BSP male to NPT male adapters)
Double-acting cylinder
High-quality chrome plated & polished rod
Honed & finished steel tube
Top quality seals
Pressure tested
1 year warranty
Standard color is graphite

Available hydraulic hose kits:

- kit with 1/4" valve type couplers - 36" long

- kit with 1/2" valve type couplers - 36" long
- kit with 1/2" ball type couplers - 36" long

- kit with 1/2" valve type couplers - 24" long
- kit with 1/2" ball type couplers - 24" long

Disclaimer: Original equipment manufacturer names, part numbers, tradenames, trademarks, drawings, colors, and descriptive information are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
