SKU: 58597

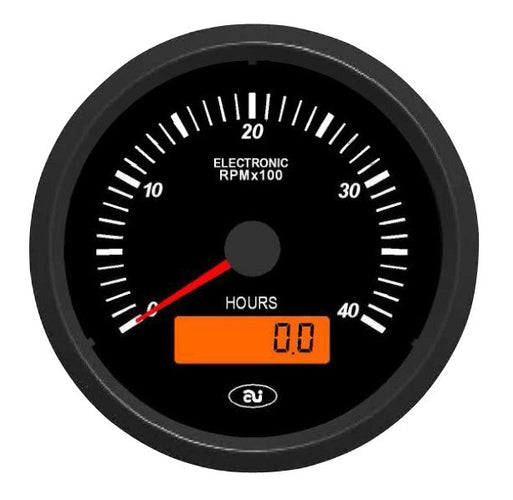

Analog engine RPM indicator with stepper motor technology and LCD hour meter. The RPM function is programmable by 2 pushbuttons.

Operating voltage: 10-32Vdc (from 10 to 17V for 12V battery system and from 18V to 32V for 24V battery system)

Frequency input range: 0 to 10000Hz (sinusoidal, square, and triangular wave)

1 CAN BUS line (optional)

Protection: IP65 front side, IP30 back side

Operating temperature: -20°C +85°C

Storage temperature: -35°C +90°C

Illumination dial: white LED

Illumination LCD hour counter: amber LED

Programming frequency/RPM: with 2 backside pushbuttons

Connector type: Molex MINIFIT jr. (4 poles)

Hole panel dimension: 80mm

EMC: ISO7637-2 ISO2575
